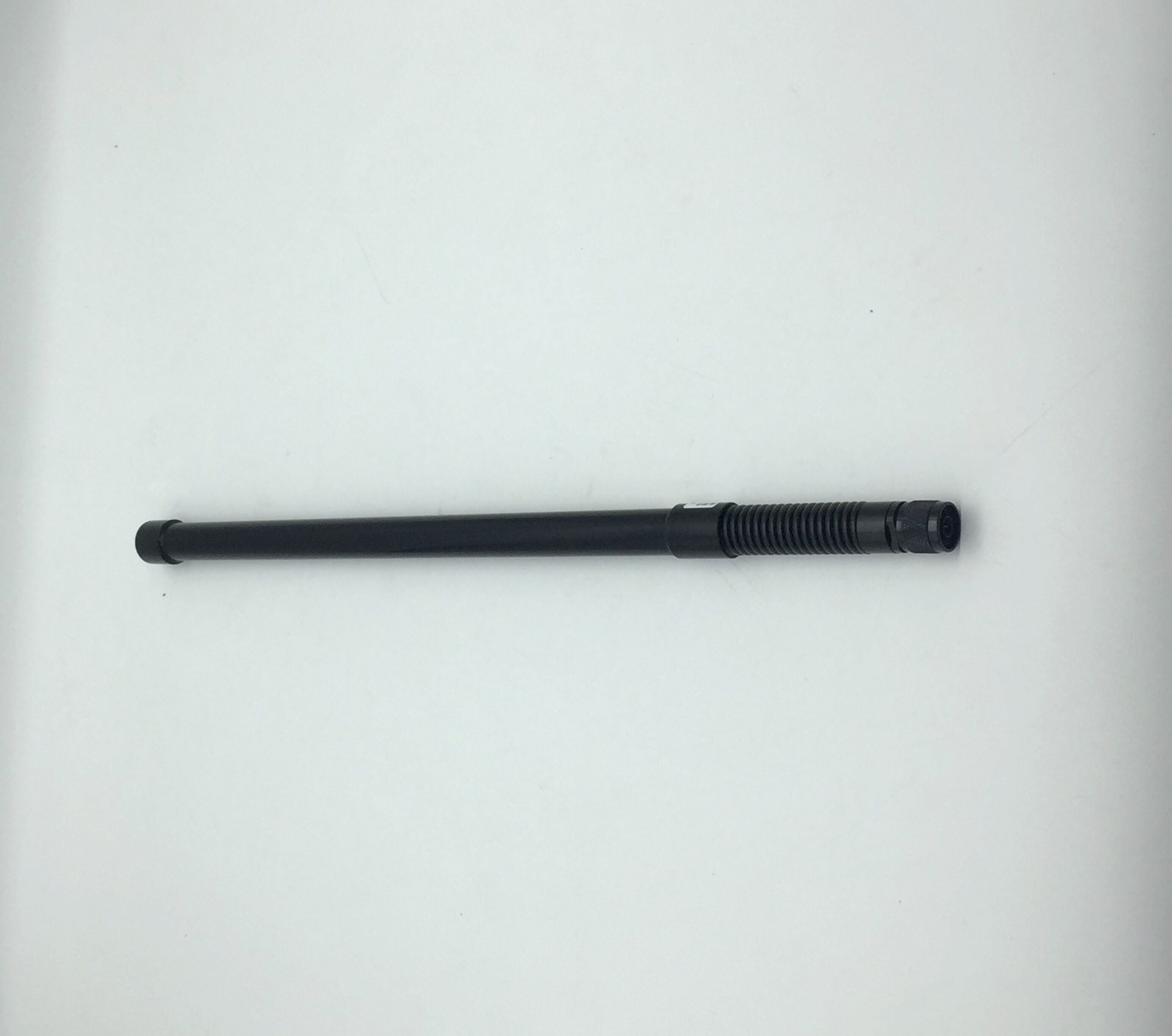

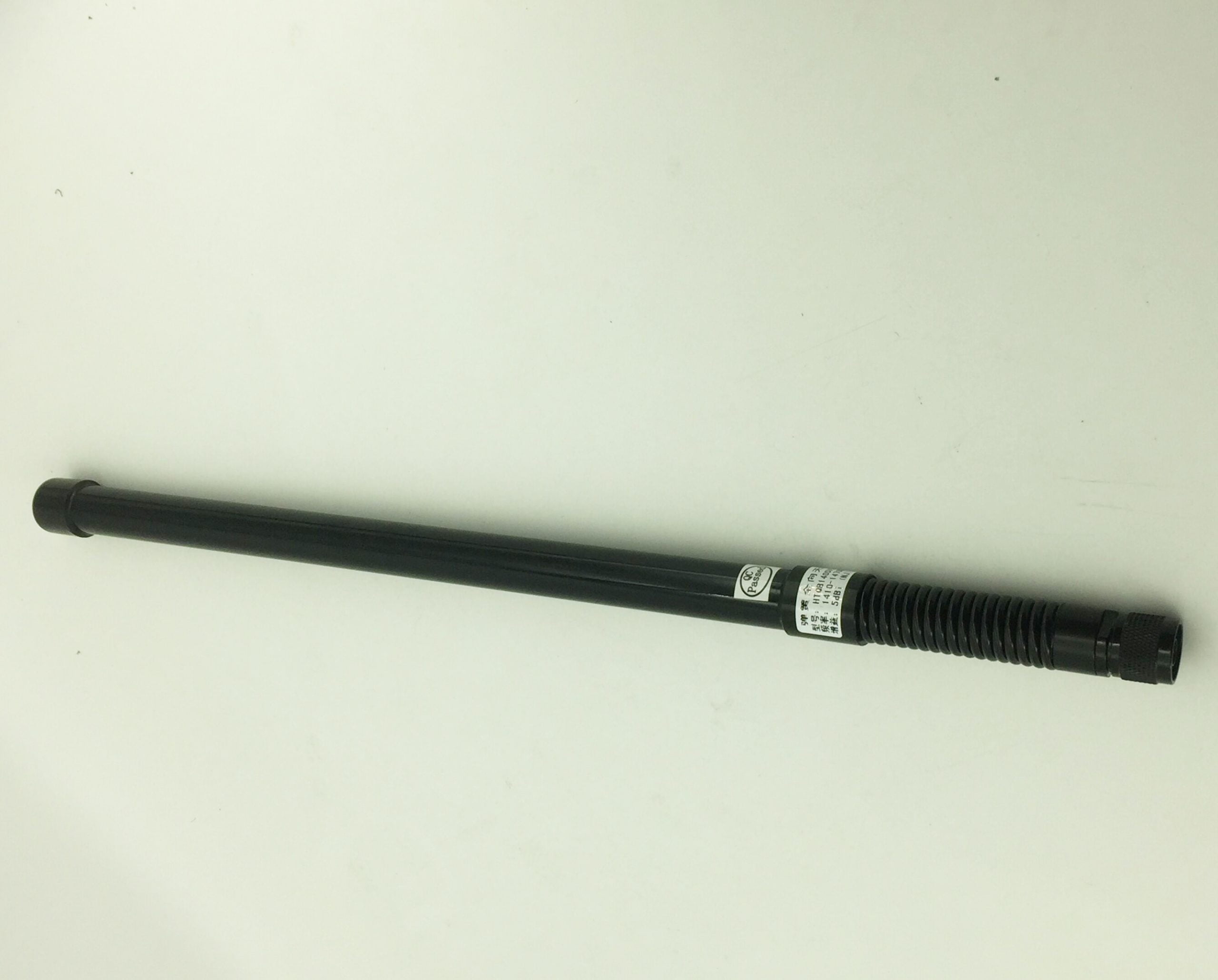

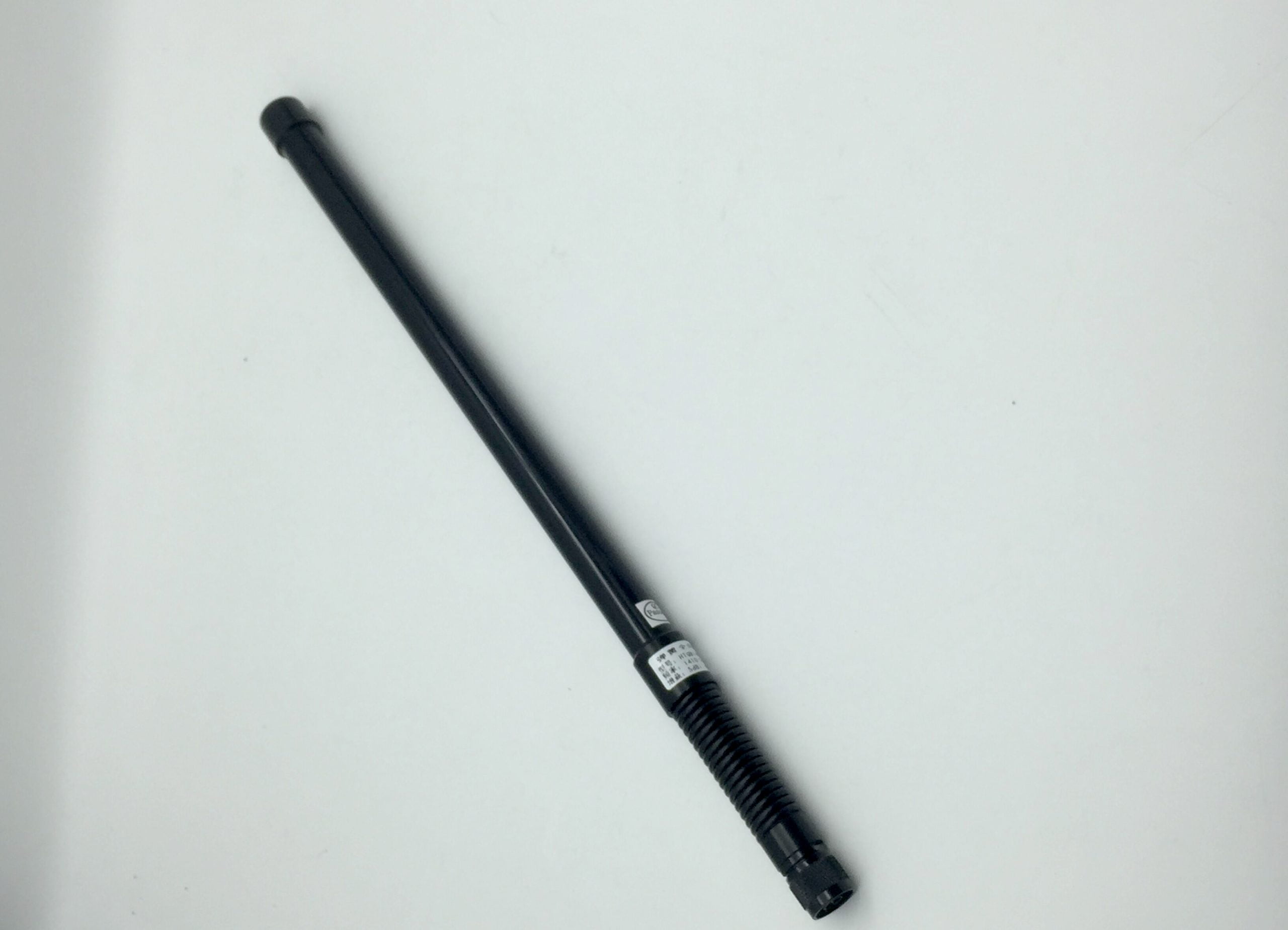

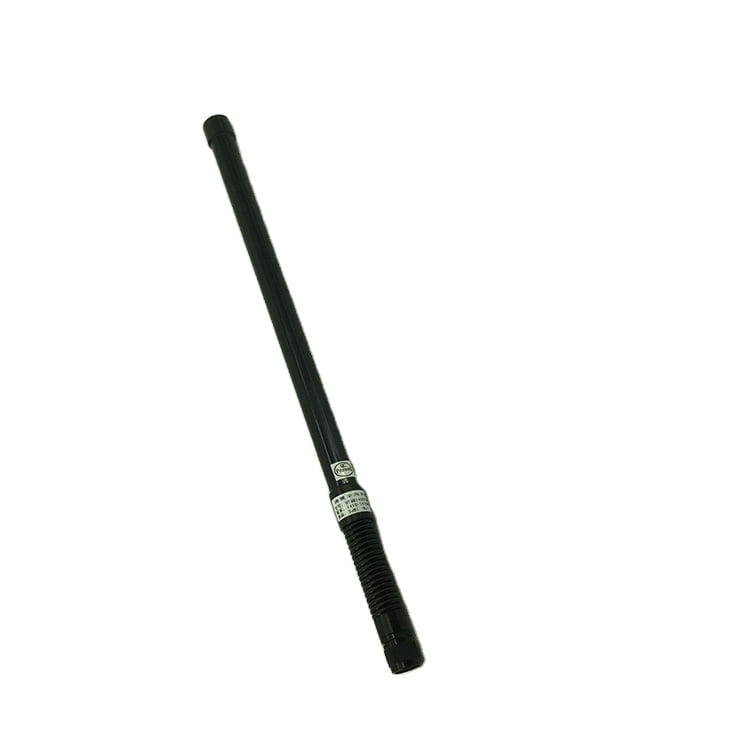

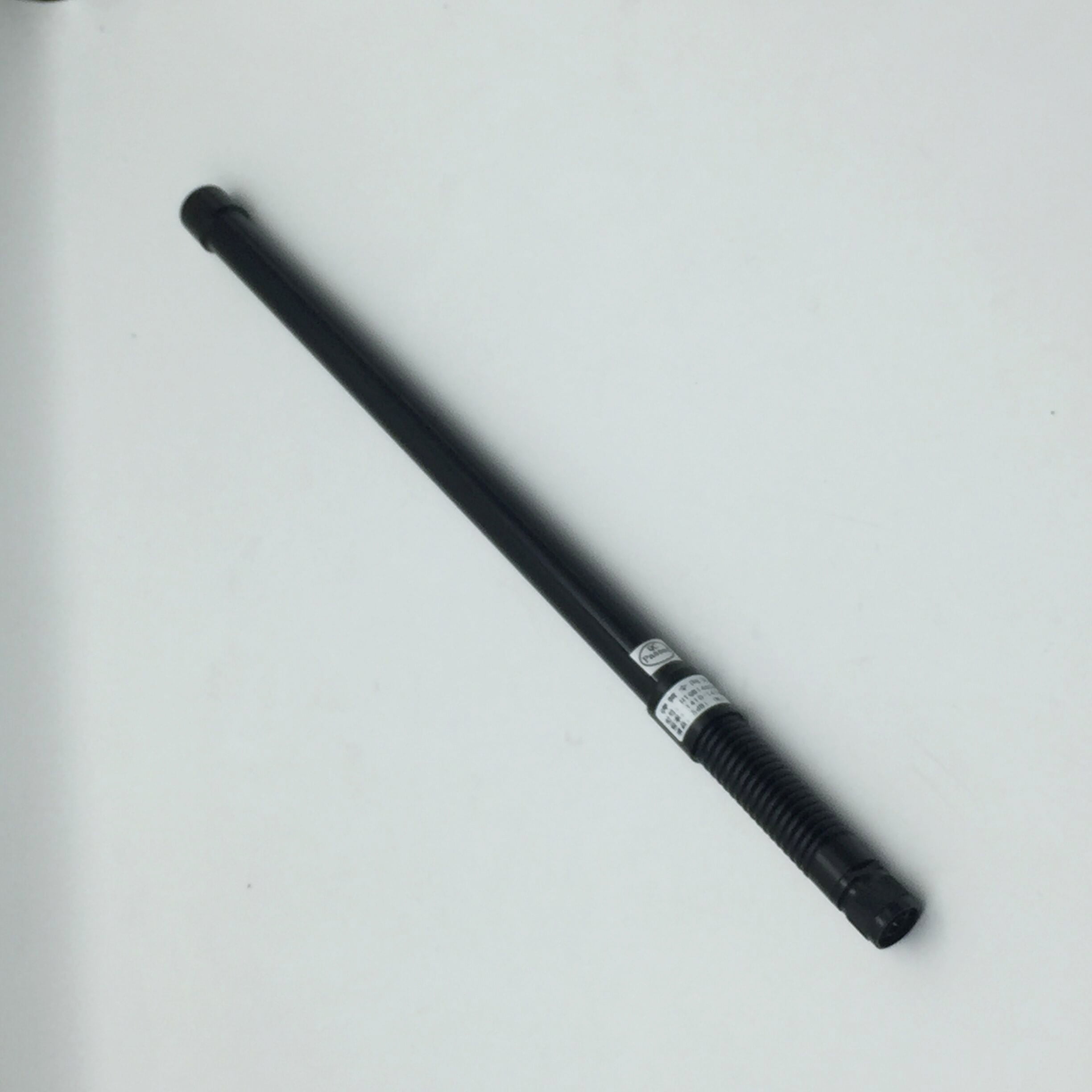

The HTTH144360V8NK is an outdoor spring omnidirectional antenna designed for the 1410-1470MHZ On-board users .The antenna is made of copper tube array as radiation, the outside is made of high quality fiberglass material cover, high gain, good wave ratio performance, good waterproof and anti-aging performance.
Specification
|
TECHNICAL PARAMETER
|
|
|
|
MODEL
|
HTTH144360V8NK
|
|
|
FREQUENCY
|
1410～1470 MHz
|
|
|
BAND
|
60MHz
|
|
|
GAIN
|
8 dBi
|
|
|
VSWR
|
≤1.5
|
|
|
IMPEDANCE
|
50 Ω
|
|
|
POLARIZATION
|
VERTICAL
|
|
|
Max Power
|
100 W
|
|
|
CONNECTOR
|
NK
|
|
|
SIZE
|
Φ32*850 mm
|
|
|
WEIGHT
|
1.5 KG
|
|
Company Profile
Packing & Delivery
FAQ
1. who are we?We are based in Beijing, China, start from 2012,sell to Domestic Market(63.00%),Mid East(5.00%),Eastern Asia(5.00%),North America(3.00%),South America(3.00%),Eastern Europe(3.00%),Africa(3.00%),Oceania(3.00%),Western Europe(3.00%),South Asia(3.00%),Central America(2.00%),Southern Europe(2.00%),Southeast Asia(1.00%),Northern Europe(1.00%). 2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?antennas,jumpers,components,suckers,tripots4. why should you buy from us not from other suppliers?The company has more than 12 years experience in producing antennas and relative components , with advanced producing equiments , good quality management system and stable fast delivery service. Customized products are also availble.5. what services can we provide?Accepted Delivery Terms: FOB,EXW；Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Cash;Language Spoken:English,Chinese
