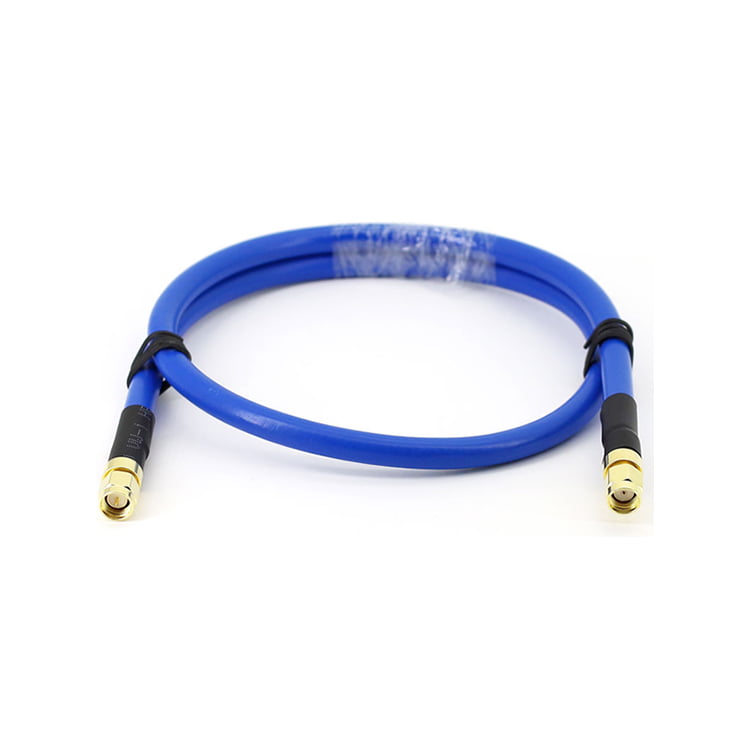

The HTRPSMAKJ-RG402-SMAJ-1000 is a connector RF coaxial cable assembly jumper for RPSMAJ to SMAJ.Coaxial cable made of RG402 wire has the characteristics of low insertion loss and low standing wave ratio.
Specification
|
TECHNICAL PARAMETER
|
|
|
|
MODEL
|
HTRPSMAKJ-RG402-SMAJ-1000
|
|
|
FREQUENCY
|
DC～6000 MHz
|
|
|
VSWR
|
≤1.3
|
|
|
IMPEDANCE
|
50 Ω
|
|
|
INSERTION LOSS
|
1.5dB/m @6000MHz
|
|
|
BENDING RADIUS
|
83 mm
|
|
|
MAX DRAWBAR PULL
|
54N≤1m
|
|
|
CONNECTOR
|
RPSMAJ/SMAJ
|
|
|
COXIAL BACLE MODEL
|
RG402
|
|
|
LENGTH
|
1 M
|
|
Company Profile
Packing & Delivery
FAQ
1. who are we?We are based in Beijing, China, start from 2012,sell to Domestic Market(63.00%),Mid East(5.00%),Eastern Asia(5.00%),North America(3.00%),South America(3.00%),Eastern Europe(3.00%),Africa(3.00%),Oceania(3.00%),Western Europe(3.00%),South Asia(3.00%),Central America(2.00%),Southern Europe(2.00%),Southeast Asia(1.00%),Northern Europe(1.00%). 2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?antennas,jumpers,components,suckers,tripots4. why should you buy from us not from other suppliers?The company has more than 12 years experience in producing antennas and relative components , with advanced producing equiments , good quality management system and stable fast delivery service. Customized products are also availble.5. what services can we provide?Accepted Delivery Terms: FOB,EXW；Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Cash;Language Spoken:English,Chinese
