Original Factory Wholesale Gps Fm Am Measuring Four-star Full-frequency Measurement Antenna

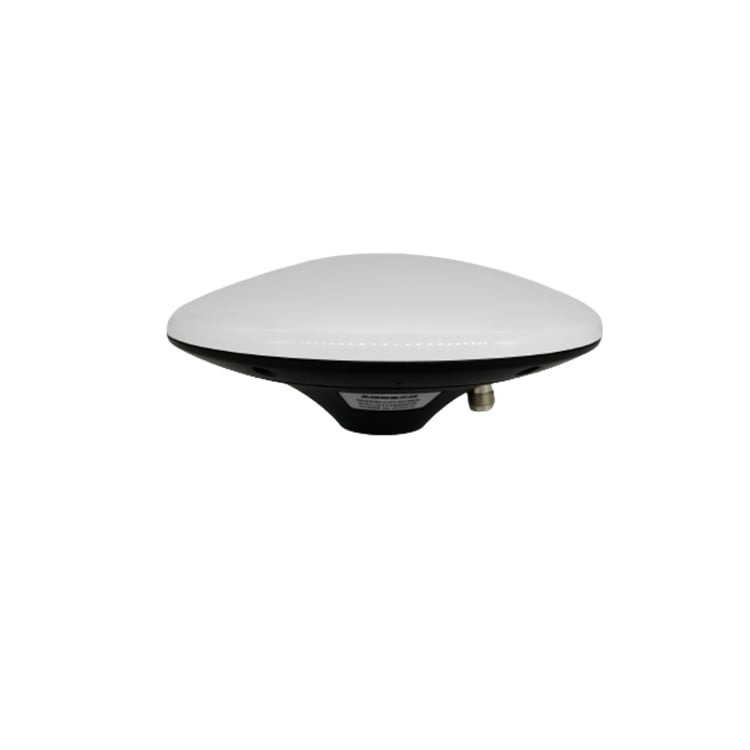

HT4N08A is a four-star full-frequency measurement antenna, which has high gain, miniaturization, high sensitivity, multi-system compatibility and high reliability, and can effectively meet the needs of users

APPLICATION AREA

The antenna can be used with a variety of satellite navigation receivers, and is widely used in land mapping, waterway mapping, precision agriculture and ocean surveying, and can also be applied to the military field according to the application conditions.
Specification
Electrical Parameters

Frequency Range(MHz)
GPS L1/L2/L5GLONASS L1/L2/L5BD B1/B2/B3GALILEO E1/E2/E5a/E5b/E6L_band
Input VSWR
<2.0
Gain(dBi)
5.5
Antenna Axis Ratio(dB)
≤3.0
Azimuth Coverage(°)
360
Phase center error(mm)
±2
Polarization
Right-hand circular polarization
Port Impedance(Ω)
50
LNA Gain(dB)
40±2
Band flatness(dB)
±2
Noise figure(dB)
≤2.0
Out put VSWR
≤2.0
Operating voltage(V)
3.3-15 VDC
Operating current(mA)
≤45
Connector type
TNC-K
Weight(g)
≤400
Antenna size(mm)
Φ147.8×61.7
Operating temperature(℃)
-40-+85
Storage temperature(℃)
-55-+85
Humidity
95% Not condensation
