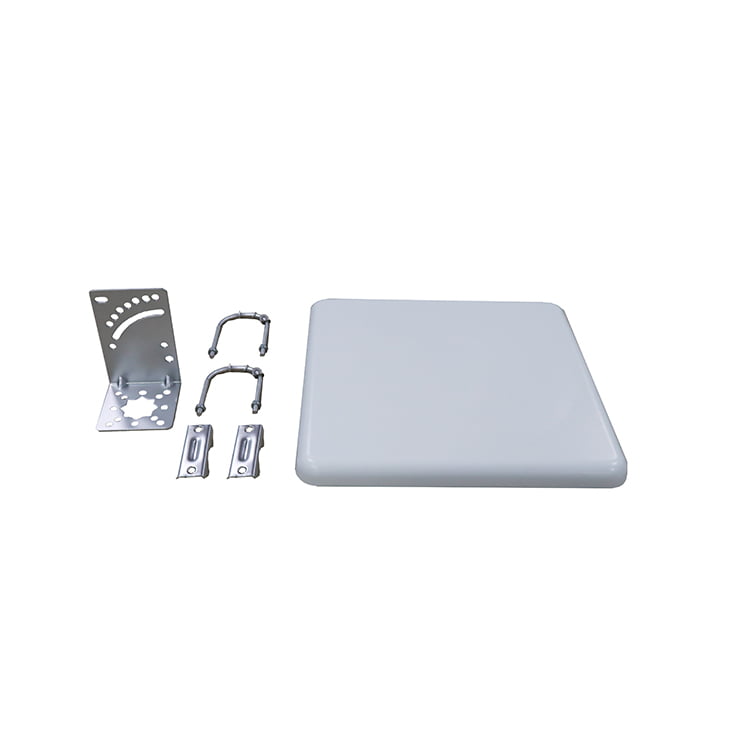

400～480MHz 70°7dBi DIRETIONAL PANEL ANTENNA
Specification
|
TECHNICAL PARAMETER
|
|
|
|
ELECTRIC INDICATORS
|
HTDF09-65V09C
|
|
|
FREQUENCY
|
902～928MHz
|
|
|
BAND WIDTH
|
80 MHz
|
|
|
POLARIZATION
|
VERTICAL/HORIZONAL
|
|
|
GAIN
|
9dBi
|
|
|
HALF-POWER BEAM WIDTH
|
HORIZONTAL:65°VERTICAL:60°
|
|
|
FRONT TO REAR RATIO
|
≥25dB
|
|
|
IMPEDANCE
|
50Ω
|
|
|
VSWR
|
≤1.3
|
|
|
MAX POWER
|
20W
|
|
|
LIGHTNING PROTECTION
|
DC GROUNDING
|
|
|
MECHANICAL AND ENVIRONMENTAL INDICATORS
|
|
|
|
CONNECTOR
|
N-FEMALE
|
|
|
CONNECTING POSITION
|
BACK
|
|
|
ANTENNA SIZE(L×W×T)
|
306×306×25mm
|
|
|
WEIGHT (kg)
|
1.4
|
|
|
MATERIAL OF ANTENNA COVER
|
ABS
|
|
|
COLOUR OF ANTENNA COVER
|
WHITE
|
|
|
MECHANICAL ADJUSTABLE INCLINATION
|
0-60°
|
|
|
OPERATING TEMPERATURE
|
-40～60℃
|
|
|
EXTREME SPEED
|
60 m/s
|
|
|
DIAMETER OF THE INSTALLATION POLE
|
35～50mm
|
|
|
BRACKET
|
MK004 L FROM STELL BRACKET
|
|
