Product Description

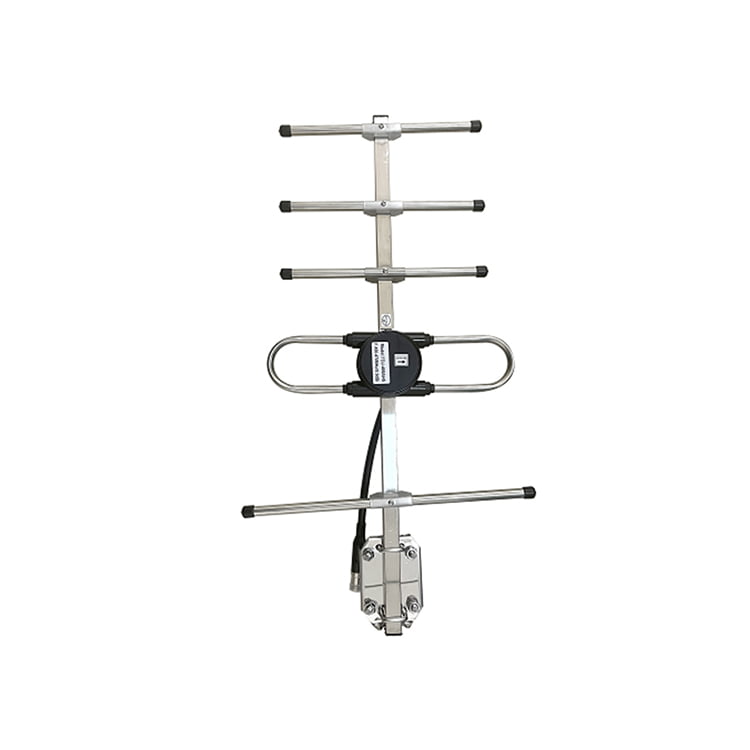

HTBM04644VH12NK is a 450 to 470 MHz band directional 8 units YAGI antenna.The whole antenna is made of high-quality alloy aluminum, with strong direction, high gain, low standing wave ratio, corrosion resistance and other extreme weather resistance characteristics
Specification
|
TECHNICAL PARAMETER
|
|
|
|
MODEL
|
HTBM04644VH12NK
|
|
|
FREQUENCY
|
450～470MHz
|
|
|
BAND
|
20MHz
|
|
|
GAIN
|
12 dBi
|
|
|
VSWR
|
≤1.5
|
|
|
BEAM WIDTH
|
V：40°
|
|
|
|
H：44°
|
|
|
FRONT TO REAR RATIO
|
≥16dB
|
|
|
IMPEDANCE
|
50Ω
|
|
|
POLARIZATION
|
VERTICAL
|
|
|
MAX POWER
|
100W
|
|
|
CONNECTOR
|
NK
|
|
|
SIZE
|
1200mm
|
|
|
WEIGHT
|
0.8 Kg
|
|
|
ACCESSORY
|
2*U BRACKETS
|
|
Company Profile
Packing & Delivery
FAQ
1. who are we?We are based in Beijing, China, start from 2012,sell to Domestic Market(63.00%),Mid East(5.00%),Eastern Asia(5.00%),North America(3.00%),South America(3.00%),Eastern Europe(3.00%),Africa(3.00%),Oceania(3.00%),Western Europe(3.00%),South Asia(3.00%),Central America(2.00%),Southern Europe(2.00%),Southeast Asia(1.00%),Northern Europe(1.00%). 2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?antennas,jumpers,components,suckers,tripots4. why should you buy from us not from other suppliers?The company has more than 12 years experience in producing antennas and relative components , with advanced producing equiments , good quality management system and stable fast delivery service. Customized products are also availble.5. what services can we provide?Accepted Delivery Terms: FOB,EXW；Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Cash;Language Spoken:English,Chinese
