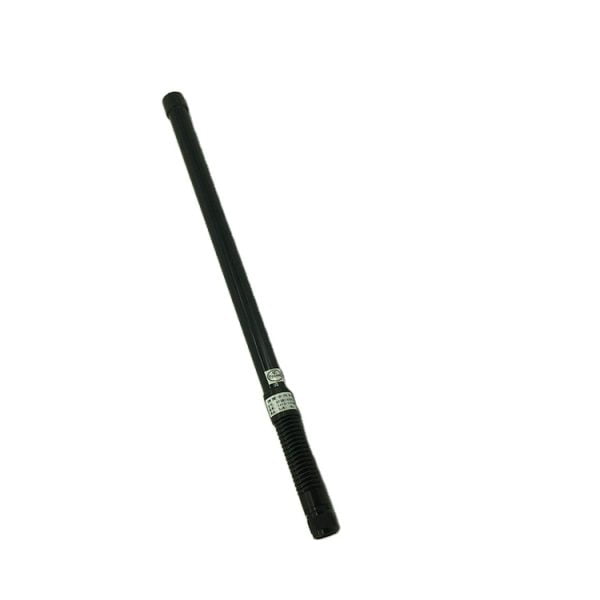

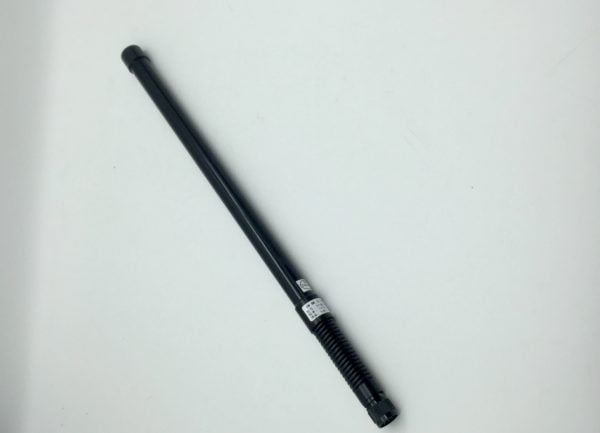

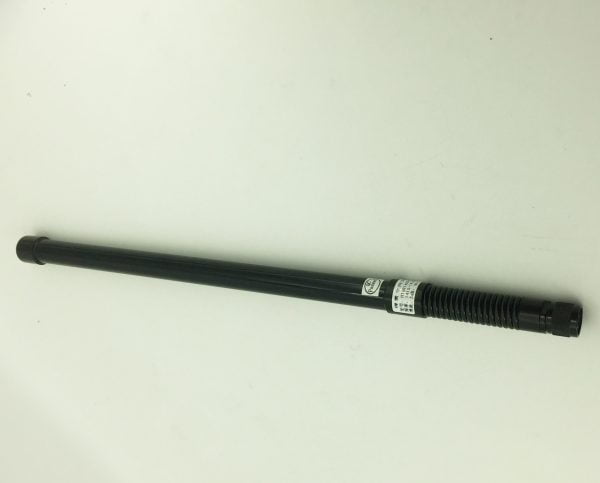

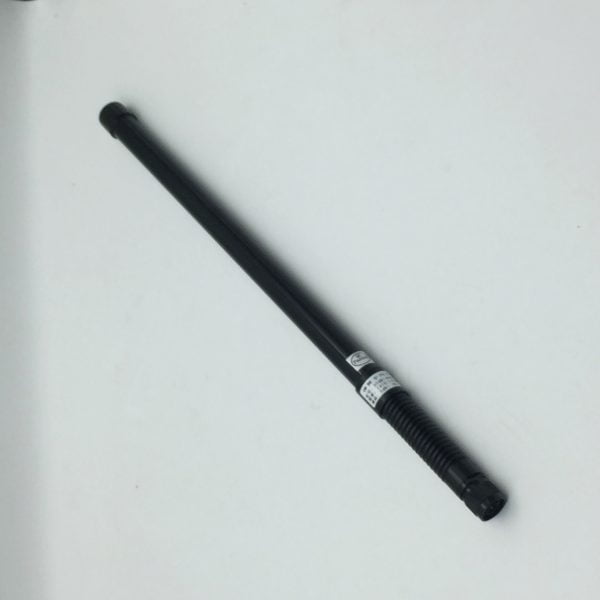

The HTTH144360V8NK is an outdoor spring omnidirectional antenna designed for the 1410-1470MHZ On-board users .The antenna is made of copper tube array as radiation, the outside is made of high quality fiberglass material cover, high gain, good wave ratio performance, good waterproof and anti-aging performance.
Specification
TECHNICAL PARAMETER | ||
MODEL | HTTH144360V8NK | |
आवृत्ति | 1410～1470 MHz | |
BAND | 60MHz | |
पाना | 8 dBi | |
VSWR | ≤1.5 | |
IMPEDANCE | 50 Ω | |
POLARIZATION | VERTICAL | |
Max Power | 100 W | |
CONNECTOR | NK | |
SIZE | Φ32*850 mm | |
WEIGHT | 1.5 KG | |
