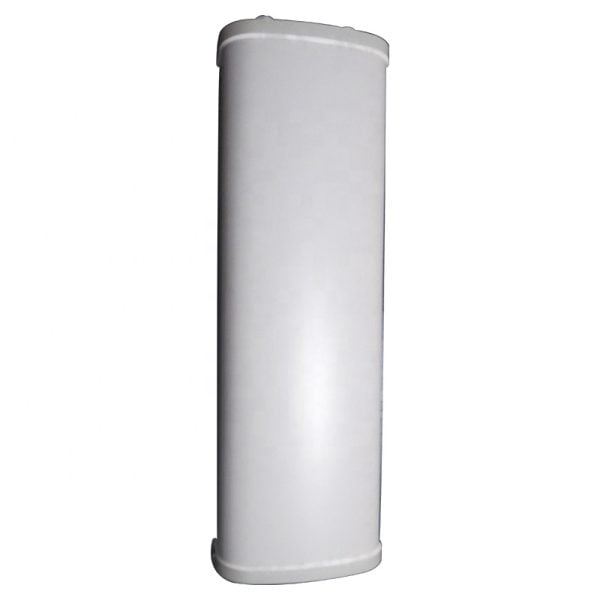

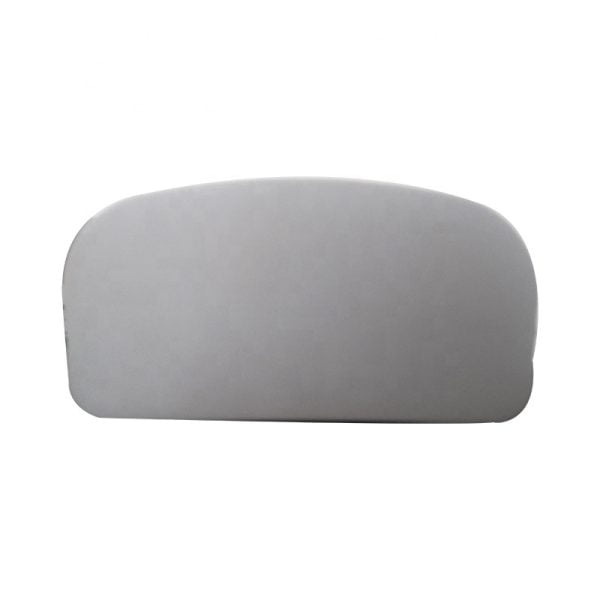

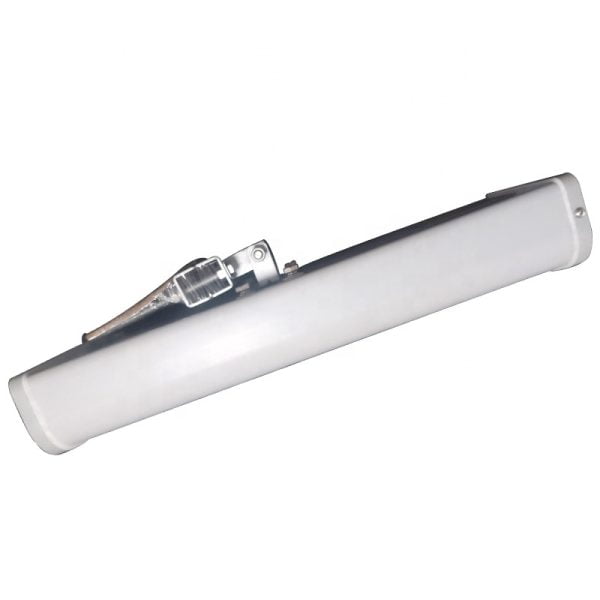

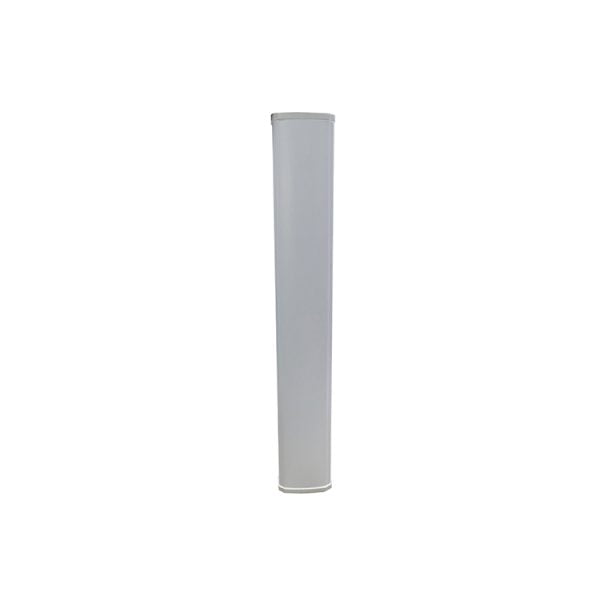

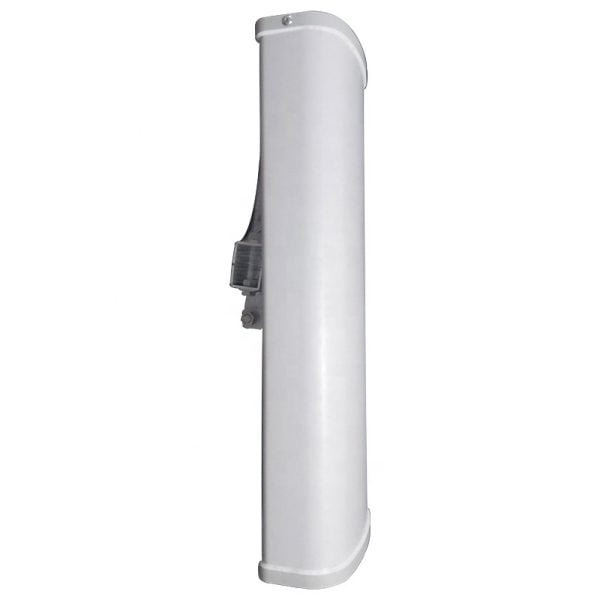

The HTBZ1727120V14NKF is a plate-shaped 1710~2700MHz wide-beam outdoor directional antenna.The antenna is made of metal array as radiation body, and UPVC is used of material cover, with widehorizontal coverage, high gain, low standing wave ratio, good water resistance and UV aging resistance.
Specification
| ELECTRIC INDICATORS | HTBZ1727120V14NKF | |
| FREQUENCY BAND | 1710～2700MHz | |
| POLARIZATION | VERTICAL | |
| पाना | 13.5±0.5dBi | |
| HALF-POWER BEAM WIDTH | HORIZONTAL | 120±12° |
| VERTICAL | 14±0.5° | |
| DOWNWARD ANGLE | 0° | |
| FRONT TO REAR RATIO | ≥21dB | |
| IMPEDANCE | 50Ω | |
| VSWR | ≤1.5 | |
| MAX POWER | 100 W | |
| LIGHTNING PROTECTION | DC GROUDING | |
| MECHANICAL AND ENVIRONMENT INDATORS | ||
| CONNECTOR | N-KF | |
| CONNECTING POSITON | BOTTOM | |
| SIZE (L×W×T) | 500×128×56mm | |
| WEIGHT (kg) | 1.2 | |
| MATERIAL OF ANTENNA COVER | UPVC | |
| COLOUR OF ANTENNA COVER | GRAY | |
| WORK TEMPERATURE | -40～60℃ | |
| EXTREME SPEED(m/s) | 60 | |
| DIAMETER OF INSTALLATION POLE | 35～75mm | |

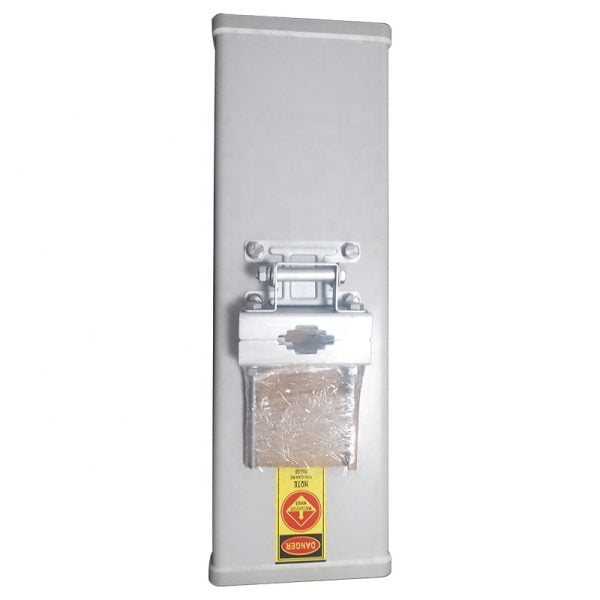

| BRACKET | MK003 | |
