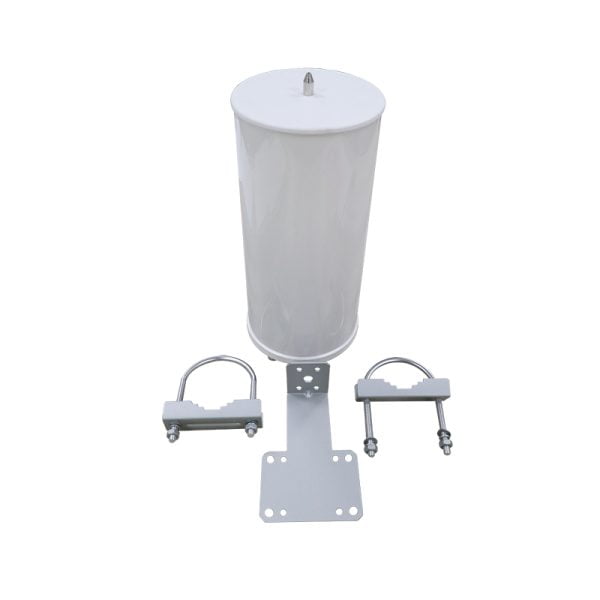

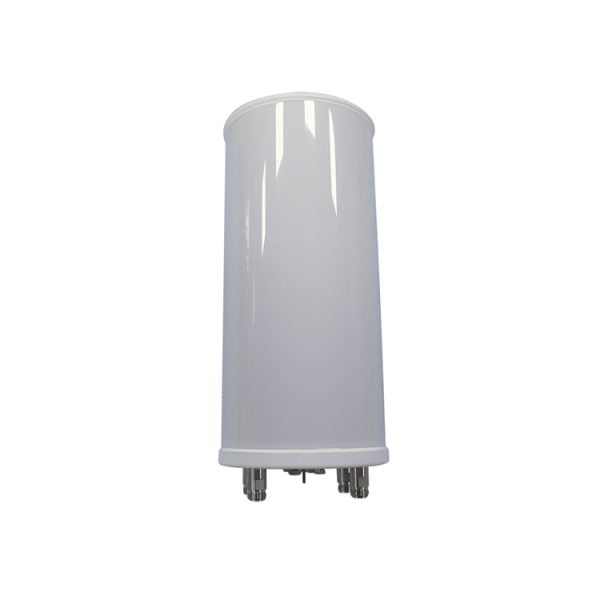

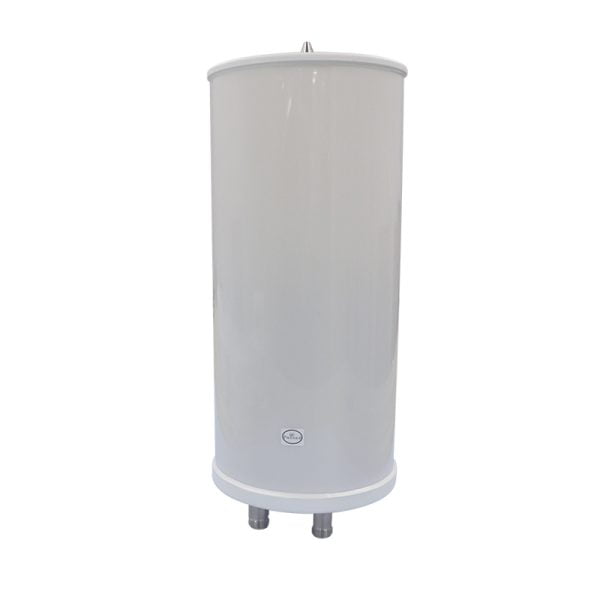

2.4/5GHz DUAL FREQUENCIES 2×2 MIMO OMNIDIRETIONAL ANTENNA
Spesifikasiya
TECHNICAL PARAMETER | HTQB2458360V8NK-M4 |
FREQUENCY | 2400-2500/5150-5850MHz |
BAND WIDTH | 100/700 MHz |
POLARIZATION | VERTICAL |
GAIN | 8dBi |
HALF-POWER BEAM WIDTH | VERTICAL:17° |
IMPEDANCE | 50Ω |
VSWR | ≤1.5/≤2.0 |
MAX POWER | 20W |

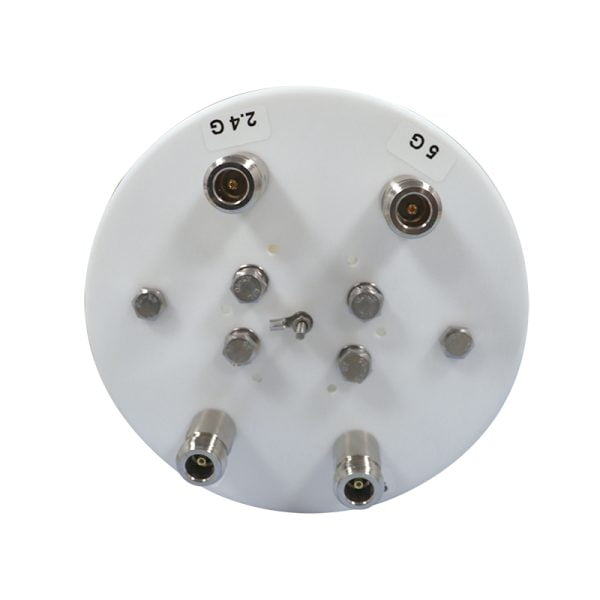

CONNECTOR | 4*N-FEMALE |
ANTENNA SIZE(D×H) | φ145×320mm |
WEIGHT (kg) | 1.2 |
MATERIAL OF ANTENNA COVER | ABS/PC |
COLOUR OF ANTENNA COVER | WHITE |
EXTREME SPEED | 60 m/s |
DIAMETER OF THE INSTALLATION POLE | 35～50mm |
Company Profile
Packing & Delivery
Tez-tez verilən suallar
1. who are we?We are based in Beijing, China, start from 2012,sell to Domestic Market(63.00%),Mid East(5.00%),Eastern Asia(5.00%),North America(3.00%),South America(3.00%),Eastern Europe(3.00%),Africa(3.00%),Oceania(3.00%),Western Europe(3.00%),South Asia(3.00%),Central America(2.00%),Southern Europe(2.00%),Southeast Asia(1.00%),Northern Europe(1.00%). 2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?antennas,jumpers,components,suckers,tripots4. why should you buy from us not from other suppliers?The company has more than 12 years experience in producing antennas and relative components , with advanced producing equiments , good quality management system and stable fast delivery service. Customized products are also availble.5. what services can we provide?Accepted Delivery Terms: FOB,EXW；Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Cash;Language Spoken:English,Chinese
